5A 10A 20A 30A 50A AC Motor VFD Filter 3 Phase Output IEC standard

Name: 5A 10A 20A 30A 50A AC Motor VFD Filter 3 Phase Output IEC standard
Brand: VEIKONG
Price: 1 USD

Buy cheap 5A 10A 20A 30A 50A AC Motor VFD Filter 3 Phase Output IEC standard product

Brand Name : VEIKONG

Model Number : VKS

Certification : CE

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : Western Union, T/T, L/C, D/A, D/P, PayPal

Supply Ability : 15000pcs per Month

Delivery Time : 3 days, depend on the order quantity

Packaging Details : Carton and Wooden Box

Product Name : 5A 10A 20A 30A 50A EMC EMI Filters

Current : 5A-1200A

Rated Voltage : 380V-480VAC

Operation Frequency : 50HZ/60HZ

Range of Temperature : -25 to 85℃

Insertion Loss : 30~90db

Contact Now

5A 10A 20A 30A 50A 3 Phase Output EMC EMI Filters For AC Motor VFD

Product Feature

√ Designed for IEC standard connectors, easy installation, high cost performance

√ Can be used in IT, communication equipment, instruments, household appliances, medical equipment, UPS, industrial air conditioning, electronic and electrical equipment, new energy equipment and military electronic equipment

√ Customized and sample orders are available

Specification

Rated Voltage	AC 380-480V
Test Voltage (1 minute)	Phase to phase DC 1500V
	Phase to ground AC 1500V / DC 2500V
Operating Frequency	50/60HZ
Range of Temperature	-25 to 85℃
Insulation Resistance	Phase to ground (up to 300A) ≥ 1500MΩ

Electrical Diagram

5A 10A 20A 30A 50A AC Motor VFD Filter 3 Phase Output IEC standard

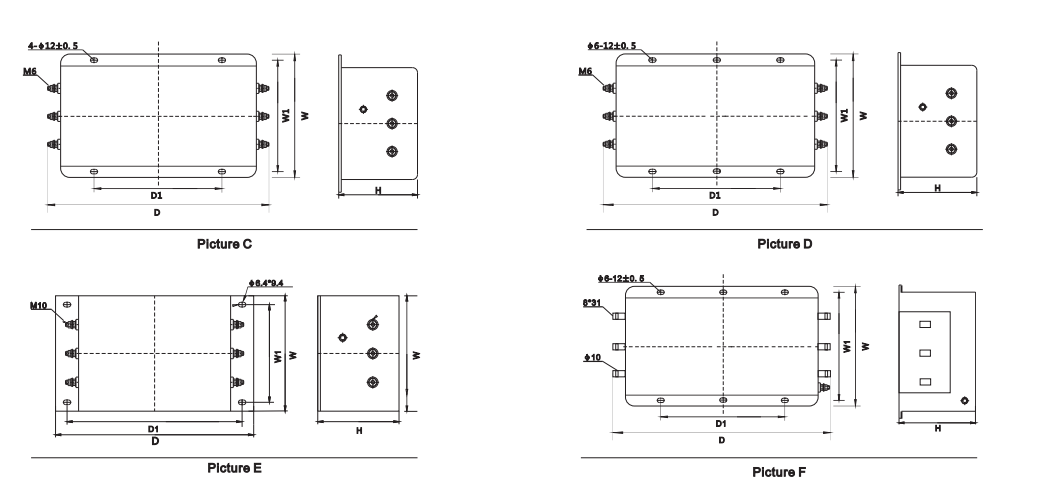

Product Size

5A 10A 20A 30A 50A AC Motor VFD Filter 3 Phase Output IEC standard
