60W 80W 100W 120W 150W Inverter Braking Resistor Wirewound Technology

Name: 60W 80W 100W 120W 150W Inverter Braking Resistor Wirewound Technology
Brand: VEIKONG
Price: 1 USD

Buy cheap 60W 80W 100W 120W 150W Inverter Braking Resistor Wirewound Technology product

Brand Name : VEIKONG

Model Number : VKS

Certification : CE

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : Western Union, T/T, L/C, D/A, D/P, PayPal

Supply Ability : 15000pcs per Month

Delivery Time : 3 days, depend on the order quantity

Packaging Details : Carton and Wooden Box

Product Name : Aluminum Housed Resistor 60W 80W 100W 120W 150W

Power range : 60W-11000W

Resistance range : 1R-10KR

Type : Fixed Resistor

Technology : Wirewound

Production standards : GB8898-2011

Contact Now

Aluminum Housed Resistor 60W 80W 100W 120W 150W With Small Size For VFD

Key Features:

1. Alloy resistance wire is winding on the ceramic body.

2. High temperature silicone coating

3. Complete welded construction

4. Excellent stability in operation

5. With fittings for installing resistor easily.

6. Used as braking resistor

We can produce 3000ohm high power ceramic resistor.

Specification

Resistor
IP Class	IP33
Power range (W)	1000
Resistance Range (Ω)	1-10000Ω
Temperature Coefficient	≤400ppm/°C

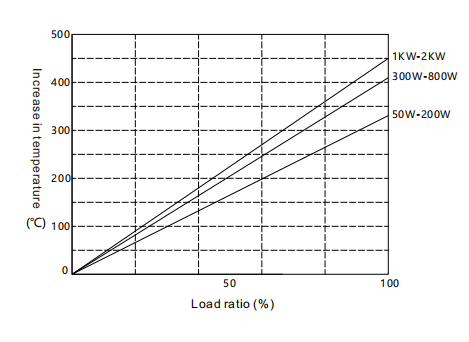

Surface Temperature Rise

60W 80W 100W 120W 150W Inverter Braking Resistor Wirewound Technology

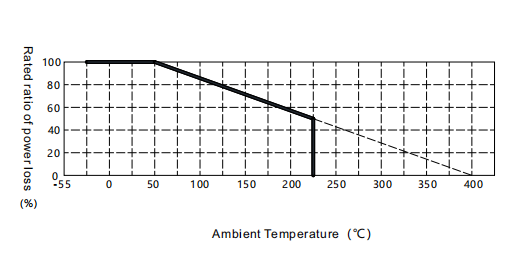

Derating Curve

60W 80W 100W 120W 150W Inverter Braking Resistor Wirewound Technology

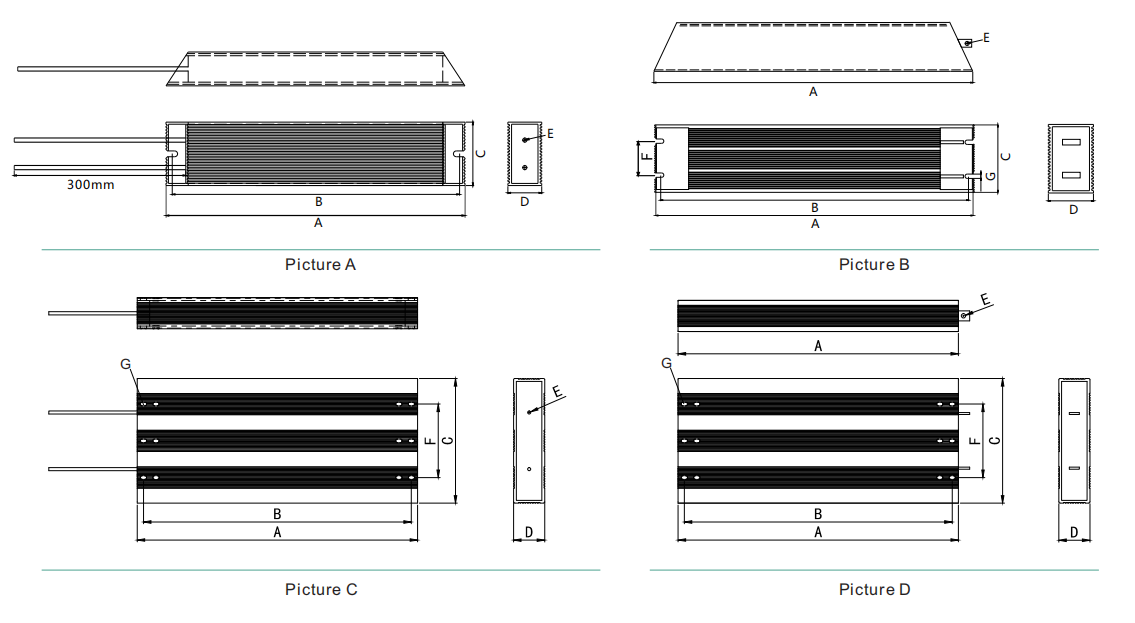

Product Size

60W 80W 100W 120W 150W Inverter Braking Resistor Wirewound Technology
